Capacitive touch panel PC has the advantages of fast response speed, multi-touch support, high sensitivity and clarity, and is widely used in various devices such as industrial tablets and medical self-service terminals.
As a high-end capacitive touch PC manufacturer, the capacitive touch panel PC we produce provides personalized customization options to meet your various unique quality needs. We accept ODM/OEM. In order to ensure that your capacitive touch panel PC can better obtain tailor-made solutions, for custom lcd panels, whether based on the design drawings or physical samples you provide, we can manufacture and produce according to your needs. For more details, click for consultation to learn about customization services.
Regarding the size, the range that the capacitive touch panel PC can be customized is from a 7-inch compact design to an 86-inch giant screen, which we can easily handle

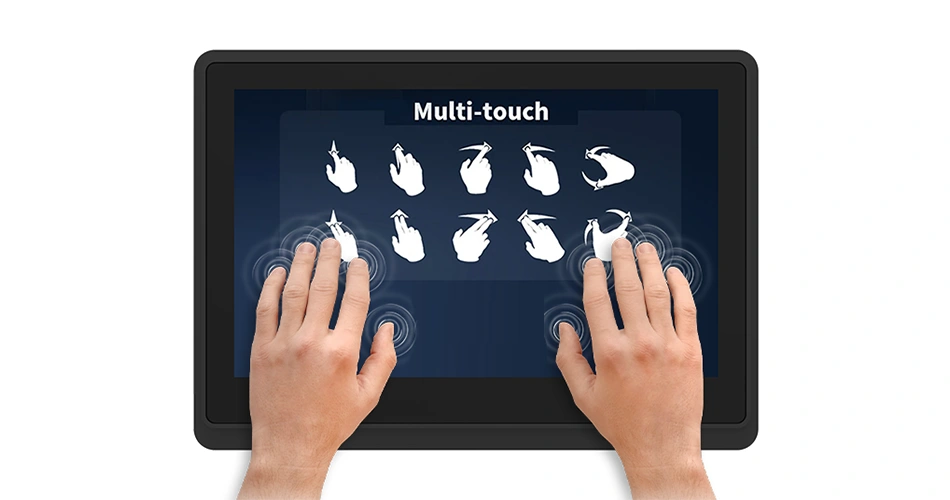

In terms of screen touch functions, the capacitive touch panel PC is equipped with waterproof and gloved contactless touch methods. It is also compatible with active pens and the use of passive pens to ensure smooth use under various conditions and environments. At the same time, it supports 10-point touch, a variety of personalized interfaces, so the capacitive touch panel PC is suitable for various operating systems, achieving true multi-functional integration.
With technological safety protection measures, the capacitive touch panel can support optical treatment of the cover plate: Anti-Glare (AG anti-glare), Anti-Reflective (AR anti-reflection), Anti-Finger (AF anti-fingerprint) and other effects.
LCD Touch Panel’s glass cover is stylish and personalized customization
Because the Touch Panel adopts professional surface treatment, the glass cover of the LCD Touch Panel can be customized according to the color and thickness of the appearance.
In terms of appearance, our LCD Touch Panel’s technology can support heterosexual cutting and hole opening. At the same time, it can also be selected and customized according to the screen printing of different covers and fashionable personalized LOGO colors.
Professional capacitive touch panel PC manufacturers also have professional specifications selection and customization services in terms of cover thickness. 0.55, 0.7, 1.0, 1.1, 1.8, 2.0, 3.0, 4.0, 5.0, 6.0mm, we can achieve these thickness specifications.
Sensor selection and customization of high-end LLCD Touch panel
Capacitive touch panel PC manufacturers also provide a variety of professional options in Senso of LLCD Touch panel. FPC can be flexibly designed and customized according to your structural needs.
Because the Senso technology of the LLCD Touch panel continues to improve, the frame size and trace width are also constantly shrinking. Under the superb manufacturing process of capacitive touch panel PC manufacturers, ultra-narrow frames can be achieved, and the narrowest trace can reach 0.03mm. At the same time, let the glass thickness be 0.4, 0.55, 0.7, 1.0, 1.1 mm, etc., giving you more choices.
Touch screen touch panel PC connection method
1; Select touch ICs: ILi Yili,EETI, Weida
2; The most complete interface support: can support IIC, USB, serial port, RS232, etc.
Touch panel for lcd selection of laminating process
touch panel for lcd In a custom LCD panel, a capacitive touch screen consists of three layers: protective glass, touch-sensitive layer and display screen. In order to ensure the visual effect and touch experience, the laminating process is crucial. According to the laminating method, it can be divided into full laminating and frame laminating. Capacitive touch panel PC manufacturers can support the following laminating methods: full laminating with optical glue, double-sided adhesive laminating
1; Double-sided adhesive lamination
This is an affordable traditional method that secures the touch panel and display by using double-sided tape at the edge of the screen, leaving an air gap in between. Although low cost and simple operation, the air layer may cause reflection, reduce clarity, and may accumulate dust, affecting the overall look and feel.
2; Optical glue fully fits
This is an advanced technology that uses optically clear glue (OCA) to bond all layers tightly without gaps, eliminating air layers, thereby reducing reflections, improving light transmission and image quality, and enhancing the firmness and water resistance of the screen. Although the cost is high, the full-fit provides excellent visual experience and durability, making it especially suitable for equipment with high quality requirements.
The choice of fitting method depends on device positioning, cost budget, or requirements for display quality and user experience. High-end products tend to use optical adhesive for full lamination to achieve the best user experience, while cost-sensitive projects may choose double-sided adhesive lamination. Because Panel pc manufacturer uniqueness of optical glue full-fit, So, Wintouch‘s capacitive touch panel PC recommends full fit of optical glue to ensure best performance and user satisfaction.
