10 inch industrial lcd monitor
10 inch industrial lcd monitor: WT101B24-Monitor
Capacitive Touch Screen Monitor Fanless 10 inch industrial lcd monitor
• Patented IP65 Front with silicon seal
• Strengthened cover glass
• Anti-glare treatment (chemical etching)
• 10-finger-multi touch capacitive touch
• LED backlight backed Panels in A+ quality
• Screwable connection for rugged environments
- Sample MOQ: 1pc
- Sample leadtime: 7 days
- Customization MOQ: 500pcs
- Customization leadtime: 25 days
Description
10 inch industrial lcd monitor:WT101B24-monitorWT070B24

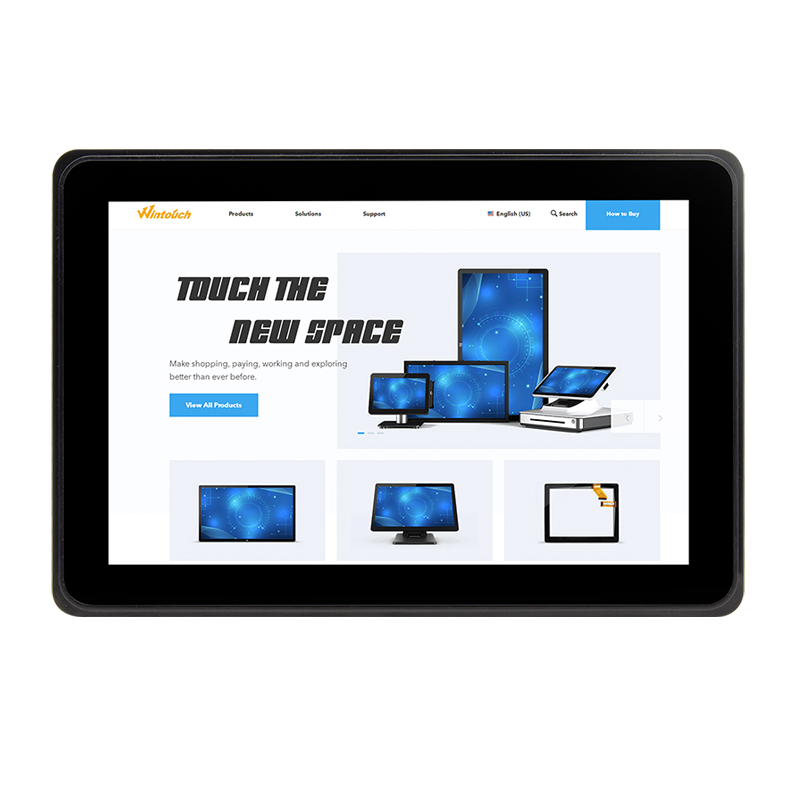

Wintouch´s Capacitive 10 Inch Industrial Lcd Monitor series has a modern sleek look with its flat edge to edge glass front panels, and a patented silicone rubberized seal making the front panels IP65 water- and dust proof.
This new series comes with capacitive 10-finger multitouch, glass front reaching MosH 7, the glass surface is anti glare treated (chemical etched), a wide variety of connectors including USB-B for touch, HDMI, DVI-D, VGA and audio inputs, all lockable including the DC-IN. Each capacitive Touch Monitor has an A+ industrial LCD panel backed by Wintouch’s 100% no dead pixel guarantee. Each monitor comes with its own desktop stand, and screw patterns on the back for VESA 75 or 100 mounts.
The high resolution support (e.g. 768p, 1920×1200 pixels) of these Wintouch touch devices make them the perfect choice for a wide variety of applications including POS systems, as control panels in industrial fields, in kiosk systems, for office/residence automation and many other areas.
The projected 10-point capacitive touch panel is accurate and responsive. The touch function is quickly established when connected via USB port. Wintouch includes touch drivers for popular OS ( Win CE, XP, Vista, 7, 8, 10), Mac, Android and Linux. Normally, no touch driver needed for Win 7, 8 and 10. The virtual keyboard and Windows gesture makes Windows convenient to use. Besides, embedded systems, such as Raspberry.
• Patented IP65 Front with silicon seal
• Strengthened cover glass
• Anti-glare treatment (chemical etching)
• 10-finger-multi touch capacitive fanless industrial monitor
• LED backlight backed Panels in A+ quality
• Screwable connection for rugged environments
Additional information
| Weight | 4 kg |
|---|---|
| IP rated front panel | IP65 |
| Screen diagonal (Inch/cm): | 10.1/25.65 |
| Physical resolution: | 1280×800 |
| Brightness (cd/m2): | 350 |
| Contrast: | 800:1 |
| Typical reaction time Tr/ Tf : | 10/15 (ms) |
| Visual Angle horizontal/vertical : | 170/170(°) |
| Backlight / Backlight Lifetime (hours): | LED / 40,000 |
| Operating Temperature | '-10 ~ +65 (°C) |
| Humidity Range (RH) | 10%-90% |
| Mounting | VESA 100/ VESA 75 |
| Housing material | Metal and plastic |
