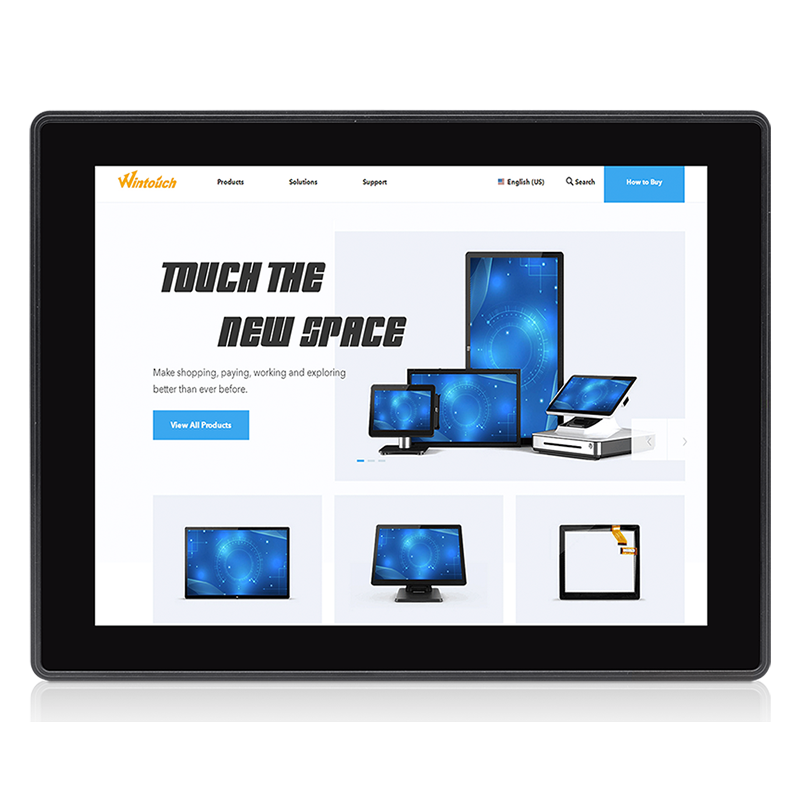

12 inch industrial touchscreen monitor​

12 inch industrial touchscreen monitor​: WT070B24-Monitor

Capacitive 12 inch industrial touchscreen monitor​
• Patented IP65 Front with silicon seal
• Strengthened cover glass
• Anti-glare treatment (chemical etching)
• 10-finger-multi touch capacitive touch
• LED backlight backed Panels in A+ quality
• Screwable connection for rugged environments
  • 复选标记 Sample MOQ: 1pc
  • 复选标记 Sample leadtime: 7 days
  • 复选标记 Customization MOQ: 500pcs
  • 复选标记 Customization leadtime: 25 days

描述

12 inch industrial touchscreen monitor​:WT121B24



• Patented IP65 Front with silicon seal
• Strengthened cover glass
• Anti-glare treatment (chemical etching)
• 10-finger-multi touch capacitive fanless industrial monitor​
• LED backlight backed Panels in A+ quality
• Screwable connection for rugged environments
Wintouch´s Capacitive 12 inch industrial Touchscreen Monitor series has a modern sleek look with its flat edge to edge glass front panels, and a patented silicone rubberized seal making the front panels IP65 water- and dust proof.
This 12 inch industrial Touchscreen Monitor comes with capacitive 10-finger multitouch, glass front reaching MosH 7, the glass surface is anti glare treated (chemical etched), a wide variety of connectors including USB-B for touch, HDMI, DVI-D, VGA and audio inputs, all lockable including the DC-IN. Each capacitive Touch Monitor has an A+ industrial LCD panel backed by Wintouch’s 100% no dead pixel guarantee. Each monitor comes with its own desktop stand, and screw patterns on the back for VESA 75 or 100 mounts.
The high resolution support (e.g. 768p, 1920×1200 pixels) of these 12 inch industrial Touchscreen Monitor make them the perfect choice for a wide variety of applications including POS systems, as control panels in industrial fields, in kiosk systems, for office/residence automation and many other areas.
12 inch industrial Touchscreen Monitor projected 10-point capacitive touch panel is accurate and responsive. The touch function is quickly established when connected via USB port. Wintouch includes touch drivers for popular OS ( Win CE, XP, Vista, 7, 8, 10), Mac, Android and Linux. Normally, no touch driver needed for Win 7, 8 and 10. The virtual keyboard and Windows gesture makes Windows convenient to use. Besides, embedded systems, such as Raspberry.



12 inch industrial touchscreen monitor​

其他信息

重量 5 公斤
IP rated front panel

IP65

Screen diagonal (Inch/cm):

12.1/30.73

Physical resolution:

1024×768

Brightness (cd/m2):

350

Contrast:

700:1

Typical reaction time Tr/ Tf :

10/15.5 (ms)

Visual Angle horizontal/vertical :

170/170(°)

Backlight / Backlight Lifetime (hours):

LED / 30,000

Operating Temperature

'-10 ~ +65 (°C)

Humidity Range (RH)

10%-90%

Mounting

VESA 100/ VESA 75

Housing material

Metal and plastic
