描述

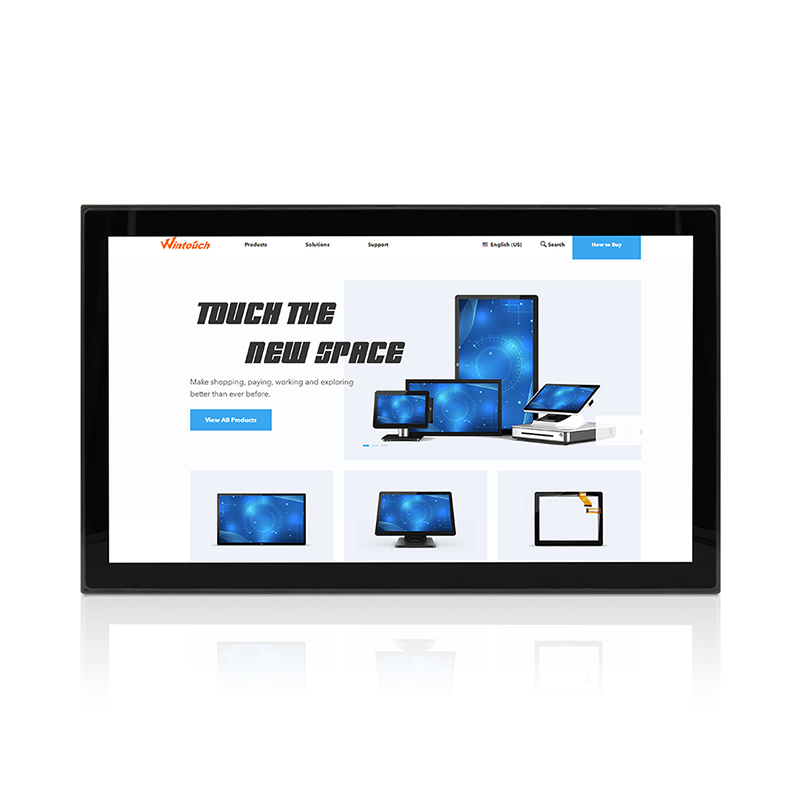

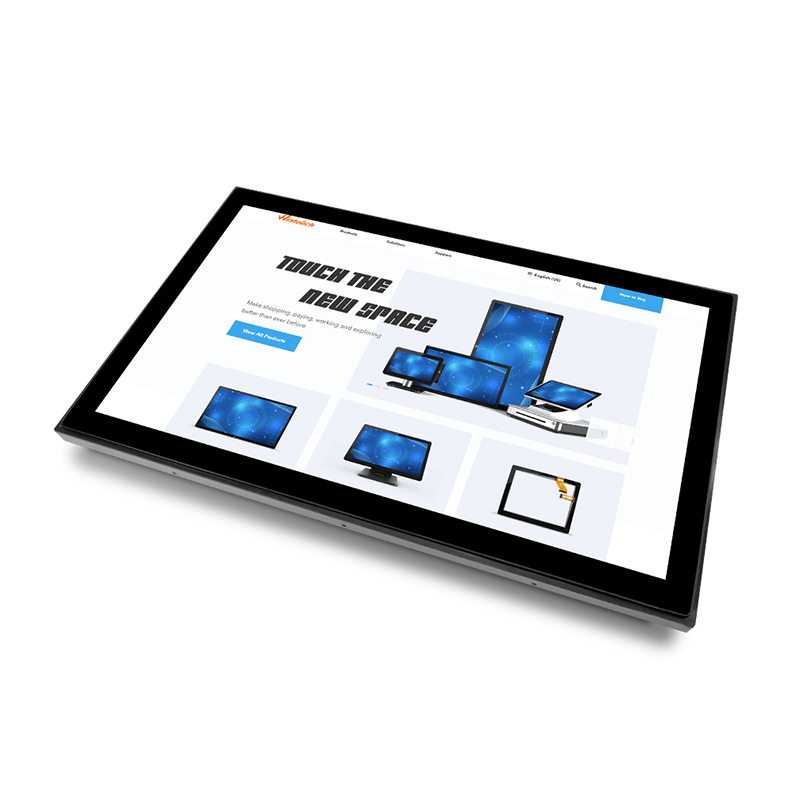

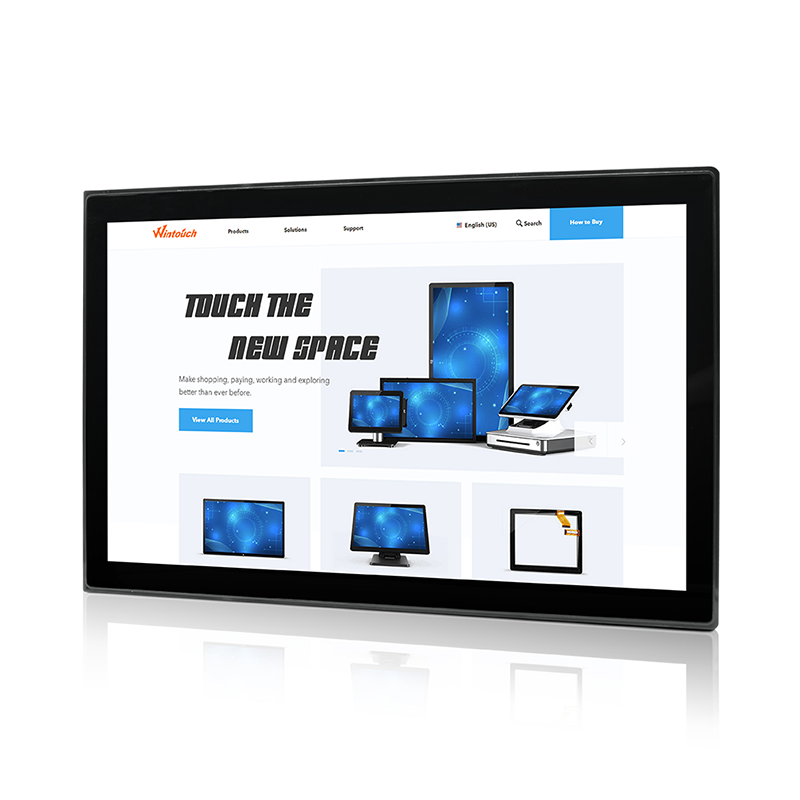

21.5 touch screen monitor ​:WT215B24

• Patented IP65 Front with silicon seal
• Anti-glare treatment (chemical etching)
• Strengthened cover glass
• 10-finger-multi touch capacitive touch
• LED backlight backed Panels in A+ quality
• Screwable connection for rugged environments

Wintouch 21.5 Touch Screen Monitor: The Definitive Industrial-Grade Solution

In the realm of digital interaction for demanding environments, the Wintouch 21.5 touch screen monitor stands out as a premier choice, masterfully blending sophisticated design with rugged functionality. Engineered for reliability and performance, this monitor series is built to excel in a diverse range of applications, from bustling retail floors to controlled industrial settings.

Aesthetics Meets Durability: Uncompromised Design

The defining characteristic of the Wintouch 21.5 touch screen monitor is its modern, streamlined appearance, featuring a flat, edge-to-edge glass front that provides a seamless and visually appealing interface. This sleek design is far from merely cosmetic; it is the foundation of its remarkable resilience. The glass panel is integrated with a proprietary, patented silicone rubberized seal that encircles the display, creating a hermetic barrier. This advanced engineering achieves a robust IP65 certification, guaranteeing complete protection against intrusive dust particles and low-pressure water jets from any direction. This makes the 21.5 touch screen monitor impervious to common environmental challenges such as spills, condensation, airborne contaminants, and frequent cleaning, ensuring uninterrupted operation in kitchens, factories, outdoor kiosks, or medical facilities.

Advanced Touch Technology and Display Excellence

At the heart of its interactive capabilities lies a high-precision, projected capacitive (PCAP) touch panel. This technology supports fluent and intuitive 10-point multi-touch, enabling complex gestures like pinch-to-zoom, rotation, and multi-finger swipes, which are essential for modern software applications. The touch experience is consistently accurate, responsive, and devoid of lag, facilitating efficient user input. The protective surface glass is notably resilient, boasting a hardness rating of Mohs 7 to resist scratches and abrasions from daily use. Furthermore, users can opt for an anti-glare treatment through a chemical etching process. This specialized finish significantly reduces ambient light reflections and diffuses glare, thereby enhancing screen readability and minimizing eye strain in brightly lit environments, such as those near windows or under strong industrial lighting.

Superior Visual Performance and Connectivity

Every Wintouch 21.5 touch screen monitor is equipped with a high-grade industrial A+ LCD panel, ensuring excellent color reproduction, wide viewing angles, and consistent brightness. It rigorously adheres to Wintouch’s stringent “100% No Dead Pixel Guarantee,” providing customers with absolute confidence in display perfection. The monitor supports high-definition resolutions up to 1920 x 1200 (Full HD+), delivering crisp, detailed imagery that is perfect for viewing complex diagrams, high-resolution graphics, or dense textual information. Versatility in connectivity is a key strength. The unit comes furnished with a comprehensive array of ports, including HDMI, DVI-D, and VGA for video input, a USB-B port for transmitting touch data to the host computer, and an audio input jack. Notably, all critical connections—including the DC power input—feature lockable mechanisms (e.g., screw-down locks or latch systems) to prevent accidental disconnection in high-traffic or vibrational environments, a critical feature for permanent installations.

Unmatched Versatility in Installation and Application

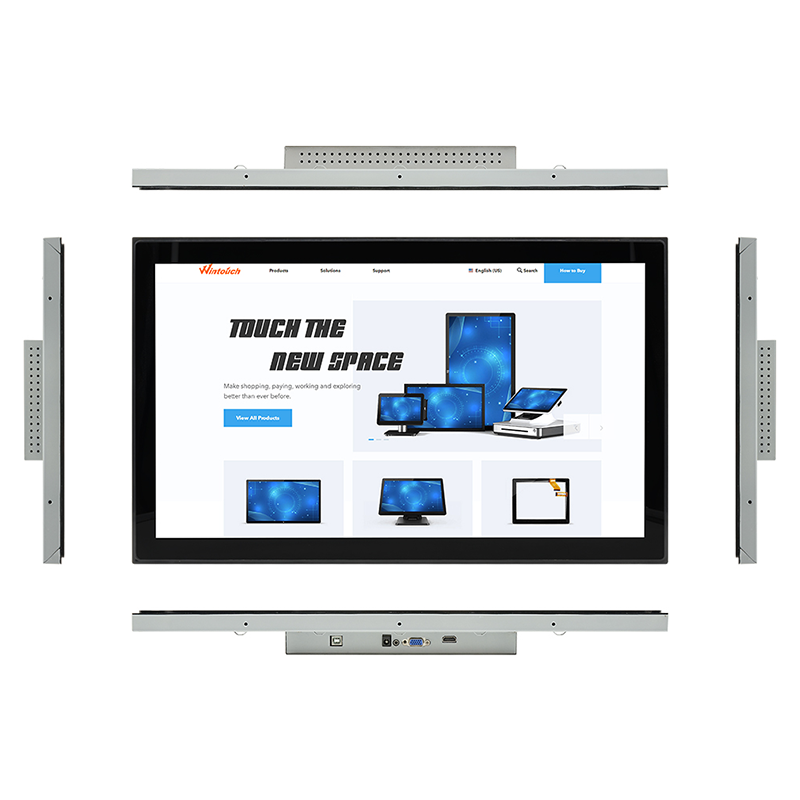

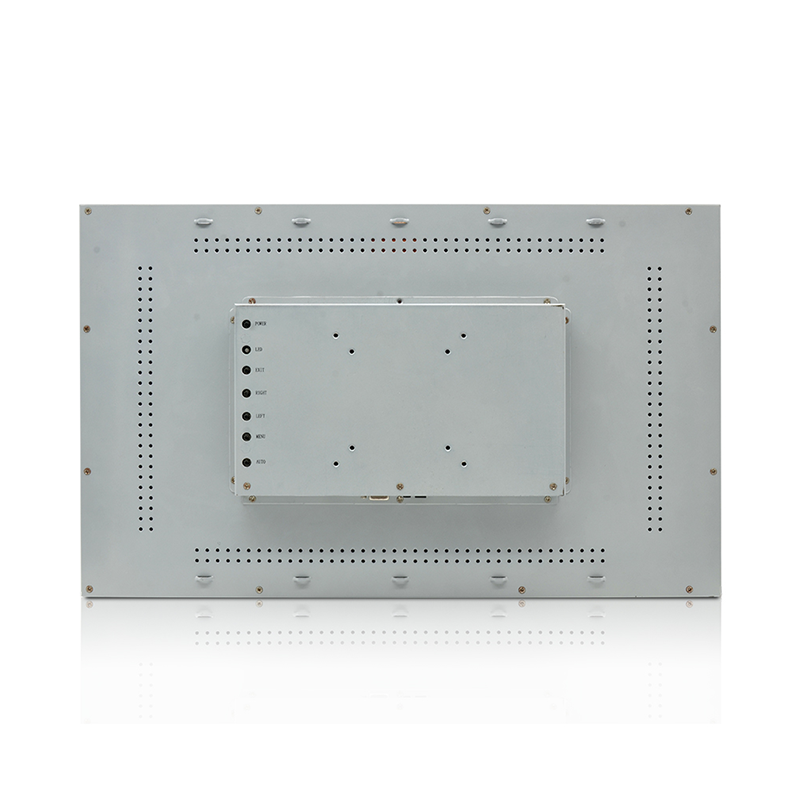

Understanding the need for flexible deployment, Wintouch designs this monitor for easy integration into any setup. It is supplied with a stable, adjustable desktop stand for immediate use. For permanent or space-saving mounting, the rear housing incorporates standardized screw patterns compatible with both VESA 75×75 mm and 100×100 mm brackets. This allows the 21.5-inch touch screen monitor to be seamlessly mounted on wall arms, swing arms, panel cutouts, or within custom enclosures. This installation flexibility underpins its vast applicability. It serves as an ideal human-machine interface (HMI) for industrial control systems and factory automation, a robust point-of-sale (POS) terminal in retail and hospitality, a secure interactive kiosk in public spaces, or a central control panel for smart office and home automation projects.

Seamless Software Compatibility and Plug-and-Play Operation

Simplifying integration is a top priority. The touch functionality is instantly established upon connection via the provided USB cable. Wintouch offers dedicated touchscreen drivers for a vast spectrum of operating systems to ensure broad compatibility, including legacy and current Microsoft platforms (Windows CE, XP, Vista), modern Windows (7, 8, 10, and 11), macOS, various Linux distributions, and Android. Importantly, for users of Windows 7, 8, 10, and 11, the monitor is typically recognized automatically as a standard HID-compliant touch device, requiring no additiona
