10 inch android panel pc
Industrial 10 inch android panel pc
Product Data Sheets
IP65 capacitive touch fanless
◆Newly designed aluminum back cover, IP65 protection, better heat dissipation
◆Fanless operation, more energy-saving and quieter
◆RK3566, 1.8GHz
◆Android 11, 2GB RAM + 16GB ROM
◆G+G multi-touch capacitive touch screen, supports multi-touch
◆Different CPU models can be selected to meet different customer needs
◆Android or Linux system can be installed
◆300 nit IPS screen, up to 1000nit high brightness monitor can be selected to meet outdoor use
◆Standard Lan Ethernet port, HD-MI interface, USB 3.0, type-c, SD card slot (different interfaces can be customized according to customer needs)
◆Widely used: industrial automation equipment control solutions, intelligent transportation, gas stations, CNC processing equipment and other industrial application solutions
- Sample MOQ: 1pc
- Sample leadtime: 7 days
- Customization MOQ: 500pcs
- Customization leadtime: 25 days
描述

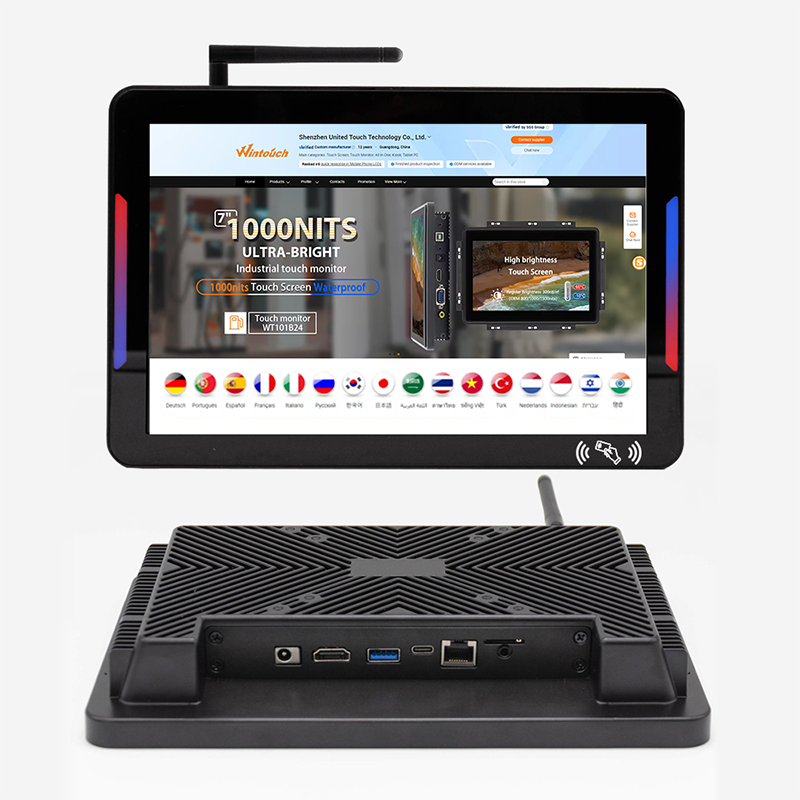

10 Inch Android Panel Pc With IP65
Design features:
This 10 Inch Android panel pc has an IP65 protection rating for the entire device and is designed for use in harsh environments with water and dust. It also uses a fanless design, and the aluminum back cover makes the heat dissipation effect even better.
Customization function:
The 10 Inch Android Panel Pc supports customization of different interfaces, including a waterproof interface; it can have a built-in NFC function; the screen brightness supports up to 1000nit;
Applicable scenarios:
Applicable to outdoor information kiosks, gas stations, parking lot management, transportation scheduling, equipment management, etc.
其他信息
| IP rated front panel | IP65 |
|---|---|
| Screen diagonal (Inch/cm): | 10.1/25.65 |
| Display active screen size: | 21.70×13.60mm |
| Aspect ratio: | 16:10 |
| Physical resolution: | 1280×800 |
| Colours displayed: | 16M |
| Brightness (cd/m2): | 350 |
| Contrast: | 800:1 |
| Typical reaction time Tr/ Tf : | 10/15 (ms) |
| Visual Angle horizontal/vertical : | 170/170(°) |
| Backlight / Backlight Lifetime (hours): | LED / 30,000 |
| Operating Temperature | '-20 ~ +70 (°C) |
